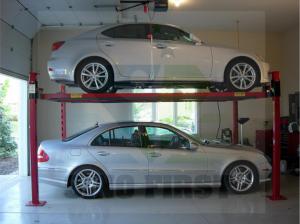

2700kg 4 Post Hydraulic Car Lift Two Level Car Park Equipment

Brand Name : ChangYue

Model Number : PJS4

Certification : CE ISO9001

Place of Origin : Shanghai, China

MOQ : 1 set

Price : to be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Unit per month

Delivery Time : 30-60 days

Packaging Details : Standard export packing

Type : PJS Four Post Parking Lift

Material : Steel

Dive mode : Hydraulic

Motor power : 2.2kW

Mode of operation : Manual

Lifting height : 2000mm

Operation Mode : Manual Button

Power supply : 50HZ, 220V, 1P/380V, 3P;

Contact Now

Four Post Parking Lift


Description

This park lift can be used for family, apartments, hotels and other places; it can be designed based on site dimensions; 1 car space will park two cars to save more spaces; it can be installed both inside room and outside; For family use, it can provide 220V power; it can be used both for parking and repairing cars; Special-made for SUV.

Advantages

  • Manual machine to unlock, easy and convenient;
  • Adopts the hydraulic lock and the main insurance positioning structure and the rope breaking and insurance machanism multiple- safety device, safe and reliable;failure, the machine cannnot be decreased repaidly;
  • Adopt the hydraulic failure and overload safety valve protection, in the event of rope breaking and insurance machanism failure, the machine cannot be decreased repidly ;
  • The lengthened double- level rear sliding plate, the position of front wheel turn pate can be adjusted, the secondary lifting trolly's sliding rail, a number of secondary lifting trolleys are optional;
  • The patform's sliding rail, a number of secoundary lifting trolley are optional;
  • The inside distance of adjustable lifting platform for different vehicle with different treads;
  • Dynamic test: 115% of the rated capacity. Static test: 150% of the rated capacity;
  • ISO9001,CE certified.

2700kg 4 Post Hydraulic Car Lift Two Level Car Park Equipment

Technical Parameters

Item Parameters
Name 4 post parking lift
Parking Lift Dimensions 4810*2666*2084mm
Out package dimensions 4200*500*700
Max Car Weight 2700kg
Inner columns width 2350mm
Central column width 2454mm
Width between two outside columns 2555mm
Distance between drive boards 969mm
Total height 2084mm
Max Lifting Height 1800mm
Lifting Time 50S
Fall Time 60S
Motor 2.2kw
Mode of operation Manual Button
Mode of control Hydraulic + Chain
Mode of unlocking Manual
Electricity 50HZ, 220V, 1P/380V, 3P;
Noise 75dB, max
Packing size each unit 4200*630*630mm
